Flat Belt
Flat Belt: Flat belts engineered for high-speed transmission, feeding and light conveying duties.
GOODLY flat belts are manufactured in our Guangzhou factory around a high-tenacity nylon or polyester carcass with a rubber, PU or nylon cover. Because we control the core, the cover and the joining, we can supply a flat belt that runs true, resists stretch and keeps a stable length on high-speed drives and feeding lines. Truly endless and open-ended types are both available.
- ISO 9001 Certified
- 15+ Years OEM/ODM
- Engineer-to-Engineer Support
- Fast Global Shipping
What Is a Flat Belt?
A flat belt is a thin, light belt with a woven nylon or polyester carcass and a rubber, PU or nylon cover. It transmits power by friction on high-speed drives and carries light products on feeding lines, running smoothly and quietly where a toothed or heavy conveyor belt would be too bulky.
Because we manufacture in our own plant, we can advise on the right compound, cord and tooth profile for your machine before you order, and back it up with sample belts for your own testing.
Key Advantages of Our Flat Belt
Every belt is engineered, moulded and inspected in house, so the advantages below are backed by real production data rather than marketing language.
High-Speed Stability
A light, balanced carcass keeps a flat belt running true with minimal flutter even at high linear speeds.
Low-Stretch Nylon Core
A high-tenacity nylon or polyester core limits elongation so belt tension and drive speed stay constant.
Rubber, PU & Nylon Covers
Choose a friction rubber cover for grip, PU for abrasion and oil resistance, or nylon for low-friction sliding.
Endless or Open-End
Truly endless belts for vibration-free running, or open lengths joined on site with our splice kits.
Made to Your Width
Widths from 3 mm to 300 mm and any length, cut and finished to your drawing or sample.
Low-Noise Running
Smooth cover finishes and accurately cut edges reduce running noise on high-speed transmission lines.
Why Buyers Choose GOODLY as Their Flat Belt Supplier
GOODLY is a belt manufacturer in Guangzhou, China, not a trading company. We control the compound, the cord, the moulding and the final inspection, which is why our flat belt keeps the same performance from the first sample to the last production batch. Send us a drawing or a used belt and we will match it, improve it if we can, and supply it on a schedule you can plan around.
- Flat Belt manufactured in our own Guangzhou factory
- ISO 9001 quality system with records for every batch
- Engineer-to-engineer support from sample to production
- Full material and dimensional reports on request
Flat Belt Support from Our Engineering Team
When you buy a flat belt through GOODLY you deal directly with the people who make it. Our technical team works from your drawing, sample or machine details, recommends the compound and tension member, and follows the order through production and testing. This engineer-to-engineer support is the reason most of our customers reorder, and it is available before, during and after every shipment.
- Technical drawings and material reports supplied on request
- Samples produced for machine trials before volume orders
- One point of contact from enquiry to delivery
- Export packing and worldwide shipping handled in house
- Material
- PU
- Polyester
- Nylon
- Rubber
- Silicone
- Leather
- Aramid
- Sponge
- Applicable Industries
- Food and Beverage
- Packaging Logistics
- Textile Industry
- Printing and Paper Manufacturing
- Wood Processing
- Electronic Manufacturing
- Automotive Assembly
- General Machinery
- Key Performance
- Food Grade
- Anti-static
- Oil-resistant
- Wear-resistant
- High-temperature Resistant
- Hydrolysis Resistance
- Flame Retardant
- High Tensile Strength
- Surface Cover Shape
- Flat Type
- Longitudinal Groove
- Waffle Pattern
- Weaving
- Impregnated Fabric
- Matte
- Rough Surface Type
- Herringbone Pattern
- Color
- White
- Green
- Navy Blue
- Black
- Silver
- Blue
- Brown
- Belt Structure
- Seamless Endless Belt
- Open End Joining Belt
- With Baffle Plate/Guide Strip
- Patterned/Embossed
- Surface Coating
- Smooth Surface
- Rough Surface/Satin Finish
- Rubber Coating - High Friction
- PU Coating
- Thickness
- 0.5mm - 1.0mm
- 1.0mm - 2.0mm
- 2.0 mm or more
- Hardness
- 80 Shore A
- 90 Shore A
- 95 Shore A
- Belt Width (mm)
- 0–50mm
- 51–100mm
- 101–200mm
- 201–400mm
Flat Belt Construction and Specifications
Every flat belt combines a woven carcass with a top and bottom cover. The table below summarises the construction options we manufacture for transmission, feeding and light conveying duties.
- Belt typeFlat transmission belt, flat feed belt, nylon sandwich belt
- CarcassNylon, polyester or cotton core, single or multi-ply
- Cover materialNatural rubber, nitrile rubber, PU or nylon
- Width3 mm to 300 mm, cut to drawing
- LengthTruly endless or open-ended, any length
- ColourGreen, yellow, blue, black, white and custom
Flat Belt Performance Data
The figures below are typical values from our own testing. Your exact application may need a different combination, so tell us the load, speed and environment and we will confirm.
| Linear speed | Up to 60 m/s |
| Working temperature | –20 °C to +100 °C |
| Elongation | Low, stable under service load |
| Width range | 3 mm to 300 mm |
| Length tolerance | ±0.5 mm on endless belts |
| Joint type | Truly endless or mechanically joined |
Flat Belt Materials and Reinforcement
We select the compound and the tension member together, because the material combination is what determines how a flat belt performs over its working life.
Nylon Core
High-tenacity nylon carcass for low stretch and stable high-speed running.

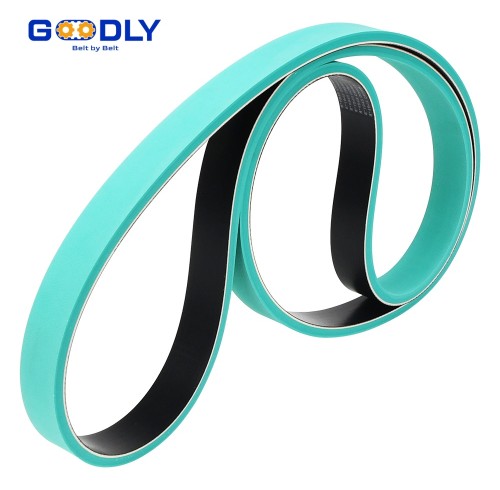

Rubber Cover
High-friction rubber cover for grip on transmission and feeding duties.

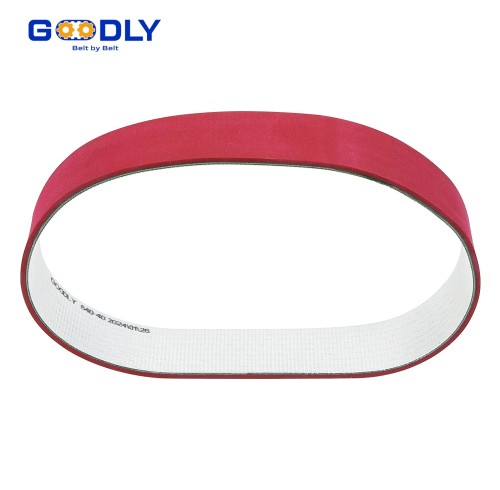

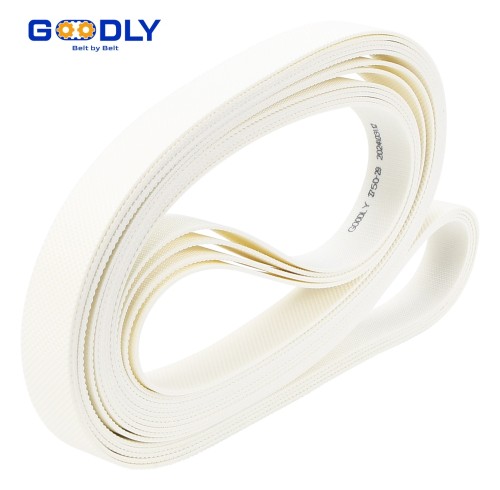

Polyurethane Cover
Abrasion, oil and cut resistant PU for demanding conveying surfaces.
Nylon Face
Low-friction nylon face for sliding, orienting and quiet running.
Industries That Use Our Flat Belt
From food and packaging to printing and automated assembly, the same engineering discipline is applied to every flat belt we ship.
Custom Flat Belt Options
Almost every order we make is a variation. Tell us the machine and the product, and we will tailor the flat belt to fit.
Width & Length
Cut to your exact width and length, endless or open-ended.
Surface Patterns
Grass, lawn, diamond and custom embossed surfaces for extra grip.
Colour Matching
Green, yellow, blue and other colours to match your machine.
Special Covers
Antistatic, food-contact and higher-temperature covers on request.
Our 8-Step Quality Control for Flat Belt
Each flat belt passes the following checkpoints before it is packed, and the records are kept against your order number.
Flat Belt Frequently Asked Questions
Quick answers to the questions our customers ask most often about flat belt.
What is a flat belt used for?
Flat belts transmit power on high-speed drives and carry light products on feeding and conveying lines. Their thin, light construction suits machines where a toothed or heavy conveyor belt would be too bulky.
Should I choose an endless or open-ended flat belt?
Choose a truly endless belt for the quietest, most stable running, especially on high-speed drives. Choose an open-ended belt when the machine cannot be dismantled, so the belt can be threaded and joined on site.
Which cover is best for my application?
Rubber covers give the highest friction for driving and feeding. PU covers resist oil, abrasion and cutting. Nylon covers run quietly and slide easily for orienting and diverting duties.
Can you match the width and colour of my existing belt?
Yes. Send us a sample or a drawing and we will match the width, thickness, cover material and colour, and confirm the carcass grade.
What is your typical lead time for flat belts?
Standard flat belts are usually ready in 7 to 12 working days after confirmation. Special covers or tooling may take a little longer.
Get Your Flat Belt Quotation Today
Send us your belt width, length, cover preference and application. Our engineers will confirm the right construction and reply with a factory price within one working day.
