Timing Pulley
We believe perfect synchronous drive starts with precise engagement. Our timing pulleys are the perfect match for our belts. Precision CNC-machined from high-strength aluminum or steel, every tooth profile (MXL, XL, L, H, T5, T10, AT5, AT10, etc.) meets international standards for zero-backlash, accurate transmission. Dynamically balanced for smooth, quiet operation even at high speeds. Offering a diverse range of designs from flangeless to flanged, they serve as a reliable foundation for building high-precision linear modules, robotic joints, and automation equipment.
23 results
ViewShowcase
MOQ:1 piece
Unit Price:US $6.12-5.65
Precision rod shaft pulley processed by CNC with high concentricity. Low noise, stable for instrument transmission and supports custom inner bore design.
MOQ:1 piece
Unit Price:US $6.12-5.65
Extended rod timing pulley made of aluminum alloy is light and high-strength. Ideal for multi-station drive, anti-deformation and stable in long-term operation.
MOQ:1 piece
Unit Price:US $6.12-5.65

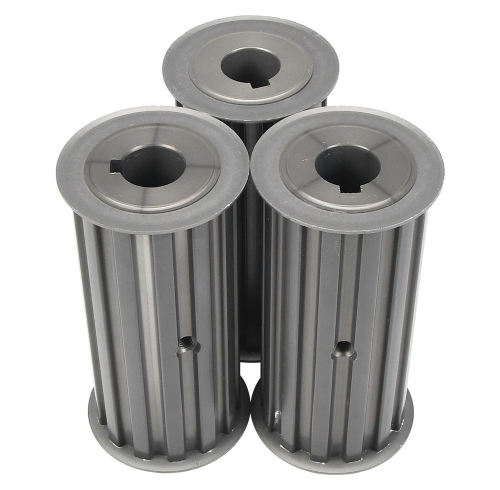

Rod type timing pulley with long shaft and integrated structure ensures stable synchronous transmission. High rigidity, durable and supports custom length for multi-point drive.
MOQ:1 piece
Unit Price:US $6.12-5.65
Non-standard custom timing pulley with high adaptability for special equipment. Made by precision machining, full specifications and perfect matching with belts.
MOQ:1 piece
Unit Price:US $6.12-5.65
Steel timing pulley features high rigidity and heavy load capacity. Ideal for machine tools, provides stable drive and long durability under harsh conditions.
MOQ:1 piece
Unit Price:US $6.12-5.65
Tooth timing pulley with precise profile ensures non-slip transmission. Perfect for automatic lines, wear resistant and supports custom tooth type and number.
MOQ:1 piece
Unit Price:US $6.12-5.65

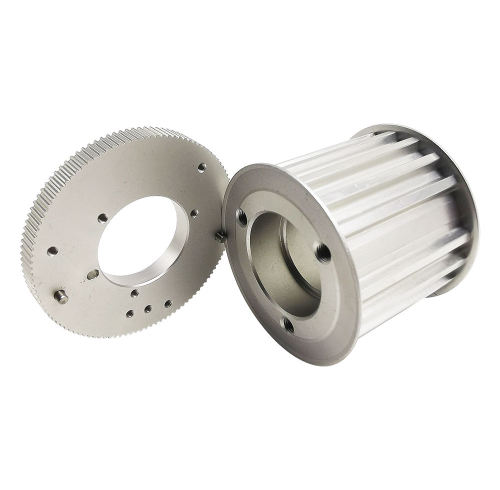

Miniature timing pulley with small size and high accuracy for instrument equipment. Compact structure, stable performance and durable for precision transmission.
MOQ:1 piece
Unit Price:US $6.12-5.65

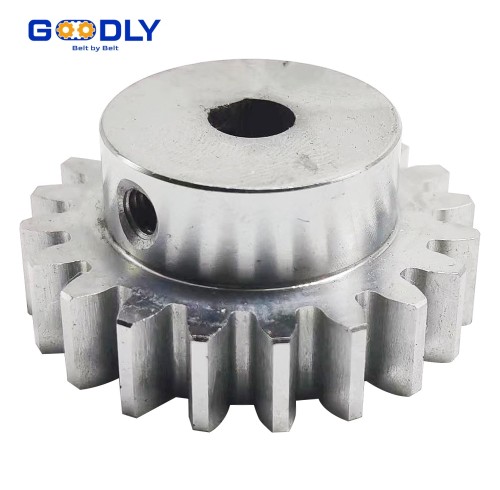

Aluminum alloy timing pulley is light but high strength for CNC machines. Ensures smooth and accurate transmission, customizable bore for various equipment.
MOQ:1 piece
Unit Price:US $6.12-5.65

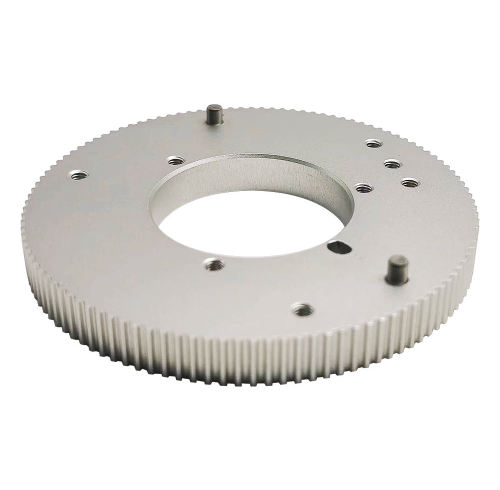

Standard XL L H timing pulley with high compatibility fits most conveyor systems. Stable structure, easy installation and supports OEM customization for industrial use.
MOQ:1 piece
Unit Price:US $6.12-5.65
Synchronous pulley with anti-slip design runs quietly in mechanical drive systems. Steel material provides high strength and long service life for heavy duty operation.
MOQ:1 piece
Unit Price:US $6.12-5.65
High precision timing pulley ensures stable transmission for automation equipment. Made of aluminum, lightweight and durable, supports custom bore and size for different machines.
MOQ:1 piece
Unit Price:US $9.12-8.65

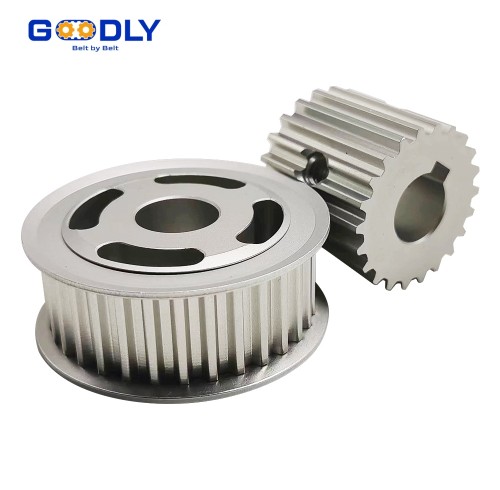

Engineered with surface-pressure-bearing technology, this timing pulley delivers exceptional load capacity and smooth operation. Ideal for precision machinery. Full OEM/ODM services available.
Custom Timing Pulley Manufacturer | High-Precision Custom Timing Pulleys by GOODLY
At GOODLY, we pride ourselves on being industry leaders in the design and manufacturing of custom timing pulleys. With decades of experience, cutting-edge technology, and an unwavering commitment to quality, we deliver tailor-made solutions that meet the precise demands of our clients across various sectors, including automation, robotics, manufacturing, and more.
Our custom timing pulleys are engineered to provide superior accuracy, durability, and performance, ensuring your machinery operates with maximum efficiency. Whether you need small batches or large-scale production, GOODLY offers flexible manufacturing capabilities to fulfill your unique specifications.
Why Choose GOODLY as Your Custom Timing Pulley Manufacturer?
Extensive Customization Options
We understand that every application has unique requirements. Our custom timing pulleys are available in a wide array of sizes, tooth profiles, materials, and finishes. From standard pitches to specialized tooth configurations, we ensure the pulley perfectly aligns with your system's needs.
Precision Engineering and Advanced Manufacturing
Utilizing state-of-the-art CNC machining, laser cutting, and precision grinding, we produce timing pulleys with tolerance levels as tight as ±0.02 mm. Our engineering team collaborates closely with clients to develop CAD models and prototypes, guaranteeing the final product exceeds expectations.
Superior Material Selection
Our custom timing pulleys are crafted from high-grade materials such as aluminum alloys, stainless steel, hardened plastics, and composite materials. This ensures corrosion resistance, high strength, and lightweight properties, suitable for demanding environments.
Rigorous Quality Control
Every pulley undergoes comprehensive inspection procedures, including coordinate measuring machine (CMM) testing, visual inspection, and performance testing. This meticulous quality control guarantees reliable operation and longevity.
Fast Turnaround and Flexible Production
We recognize the urgency of industrial projects. Our efficient manufacturing processes allow us to deliver custom timing pulleys within short lead times, without compromising on quality. We accommodate small batch orders and large-scale production to meet your project timelines.
Application-Specific Custom Timing Pulley Solutions
Automation and Robotics
In high-precision robotics, GOODLY supplies custom timing pulleys that guarantee minimal backlash, precise positioning, and smooth motion control. Our products are ideal for servo-driven systems, pick-and-place machines, and automated assembly lines.
Aerospace and Defense
For aerospace applications, durability and lightweight design are paramount. Our custom timing pulleys are manufactured with aerospace-grade materials and undergo stringent testing to ensure reliability in extreme conditions.
Medical Devices
In medical equipment, precision and hygiene compliance are critical. Our custom pulleys are designed to meet medical standards, with corrosion-resistant finishes and precise tooth profiles that enable accurate and reliable operation.
Manufacturing and Industrial Automation
Our custom timing pulleys are integral components in conveyor systems, printing machinery, and packaging equipment. They provide accurate timing, long service life, and excellent load capacity for demanding industrial environments.
Design Considerations for Custom Timing Pulleys
GOODLY provides comprehensive support during the design phase, considering key factors such as:
Tooth Profile and Pitch
The tooth profile directly impacts torque transfer and slip resistance. We offer standard profiles like HTD (High Torque Drive), GT2, and STPD, as well as custom tooth configurations tailored to your application's specific load and speed requirements.
Material and Finish
Choosing the right material affects performance, weight, and corrosion resistance. Finishes such as anodizing, hard coating, or polishing enhance wear resistance and aesthetic appeal.
Bore Size and Keyways
Custom bore diameters, set screw holes, and keyways are designed for easy installation and secure mounting.
Hub Design and Tooth Count
The hub design influences mounting stability. We offer solid hubs, flanged hubs, and split hubs to suit your assembly requirements. The number of teeth is optimized for your desired gear ratio and speed profile.
Manufacturing Process of Custom Timing Pulleys
GOODLY employs a comprehensive manufacturing workflow to ensure precision and quality:
1. Design and Prototyping
Our engineers develop detailed CAD models based on client specifications. Rapid prototyping allows for validation and adjustments before mass production.
2. Material Selection and Procurement
We source top-quality raw materials aligned with project requirements, ensuring consistency and reliability.
3. Machining and Fabrication
Using advanced CNC machines, we produce highly accurate tooth profiles and precise bore dimensions. For complex geometries, laser cutting and electrical discharge machining (EDM) are utilized.
4. Surface Finishing
Processes such as anodizing, powder coating, or polishing enhance corrosion resistance and aesthetic appeal.
5. Inspection and Testing
Each pulley undergoes dimensional checks, material hardness tests, and performance validation to meet stringent quality standards.
6. Packaging and Delivery
We ensure secure packaging to prevent damage during transit and deliver on time to meet your project schedules.
Contact GOODLY Today for Your Custom Timing Pulley Needs
Partner with GOODLY, your trusted manufacturer of custom timing pulleys, to unlock superior performance and unmatched precision. Our dedicated team is ready to assist you in designing, manufacturing, and delivering tailor-made timing pulleys that elevate your machinery's capabilities.
Reach out now for consultation, custom quotes, and technical support. Experience the difference that premium craftsmanship and innovative engineering can make for your business.
