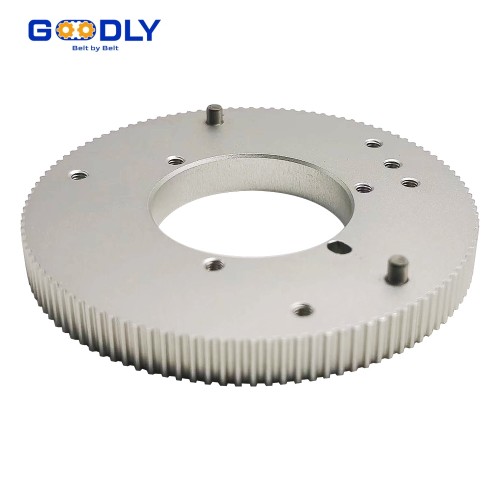

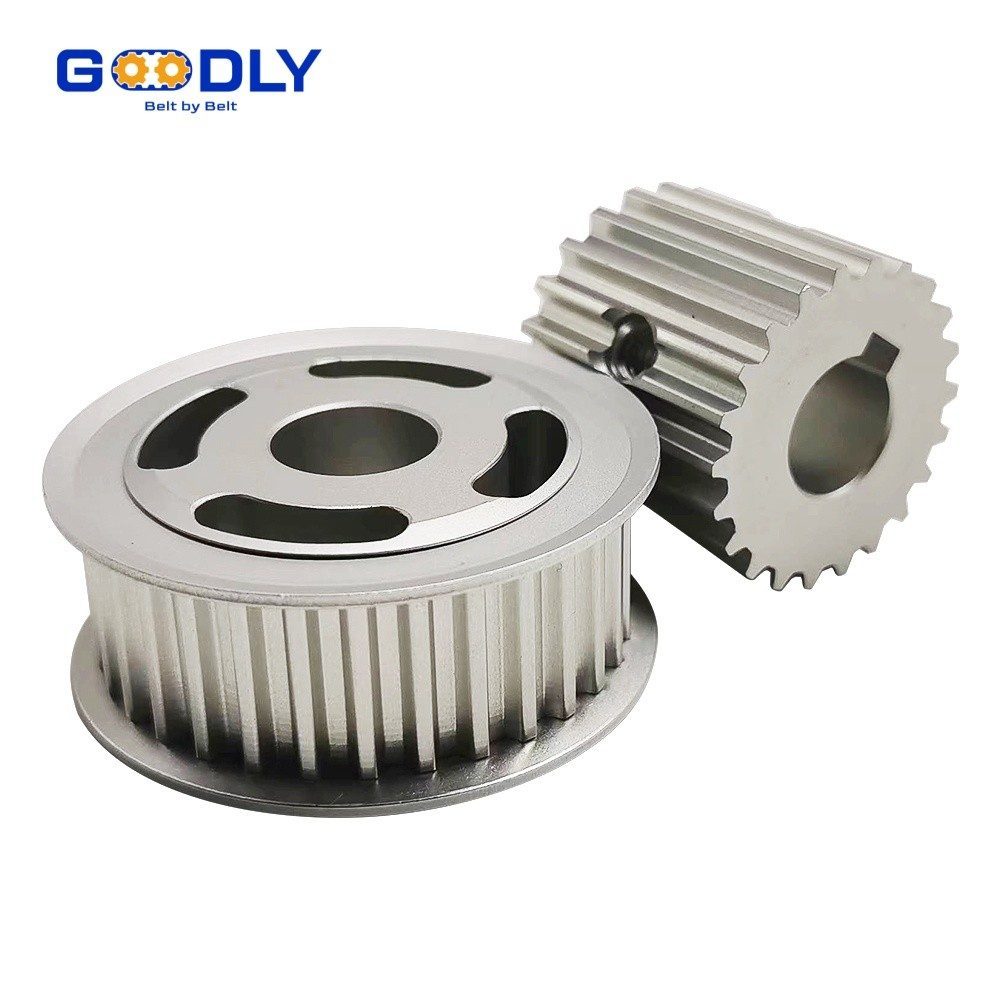

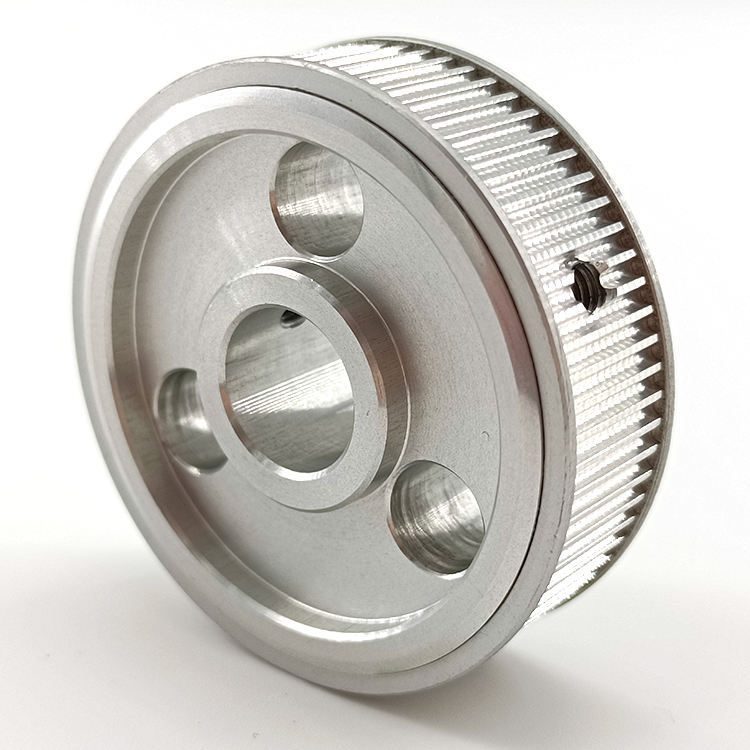

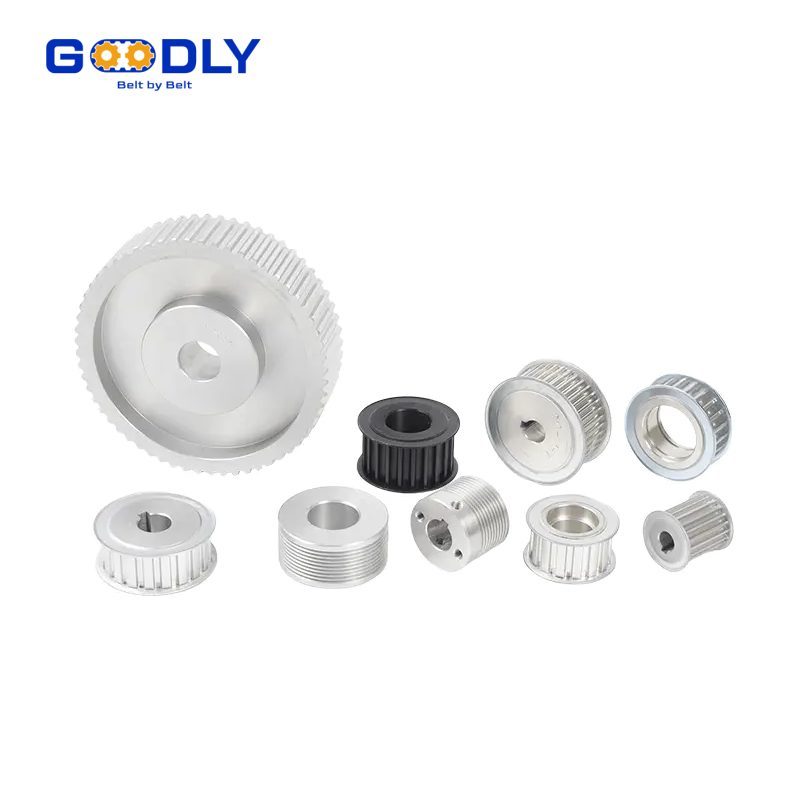

Surface-Pressure-Bearing Timing Pulley
Surface-Pressure-Bearing Timing Pulleys — Built for Axial Loads Others Cannot Handle
Engineered to absorb axial thrust and eliminate bearing failure in angled, space-crossing, and complex mechanical drive systems. Our surface-pressure-bearing design prevents the #1 cause of premature timing belt drive failure — excessive axial loading on support bearings.
The SUCCESS Difference in Load-Bearing Pulley Design
When Standard Pulleys Fail, Surface-Pressure-Bearing Design Prevails
In multi-axis drives, miter gearboxes, and space-crossing belt paths, standard pulleys transfer destructive axial loads directly to support bearings. Our integrated surface-pressure-bearing design absorbs these forces at the source — extending system life by up to 300%.
The Hidden Cost of Axial Loading
- Premature bearing failure in angled drive configurations
- Increased vibration and noise as bearings degrade
- Belt tracking errors caused by shaft deflection under load
- Unplanned downtime costs averaging $260 per minute in US manufacturing
Engineered Load Management
- Integrated thrust surface absorbs axial forces before they reach bearings
- Precision-ground contact faces distribute load evenly across bearing race
- Heat-treated alloy steel wear surfaces for long-term durability
- Maintains belt alignment within 0.05mm under full rated axial load
Performance Specifications
Axial Load Capacity
Up to 500N continuous, 800N peak — verified on calibrated test rig per ISO 281
Bearing Life (L10)
25,000+ hours at rated load, 3x longer than equivalent non-bearing pulley configurations
Tooth Profiles
HTD 5M/8M/14M, GT2/GT3, T5/T10, AT10 — optimized for medium to high torque
Materials
4140 alloy steel thrust faces, 6061-T6 aluminum body, option for full 304 stainless
Speed Rating
Up to 5000 RPM with G2.5 dynamic balance, tested at 150% rated speed
Angular Capability
Supports drive angles up to 45 degrees from shaft axis without performance loss
Simple: Drop-In Retrofit
Our surface-pressure-bearing pulleys share the same mounting dimensions as standard pulleys in the same tooth profile and pitch. Upgrade your existing drives without redesigning shafts, housings, or belt paths.
Unexpected: 300% Life Extension
Independent lab testing at the GOODLY Application Center showed our surface-pressure-bearing pulleys outlast standard pulleys by 3.2x in a 30-degree angled drive configuration running 24/7 at rated load.
Concrete: Measurable Performance
Axial stiffness: 45 N/µm. Surface hardness of thrust face: HRC 52-56. Run-out under axial load: <0.03mm. Operating temperature range: -30°C to +150°C with standard grease.
Credible: Backed by Data
Every pulley ships with a serialized inspection report including axial load test results, dimensional verification, and material certifications. ISO 9001:2015 and IATF 16949 compliant manufacturing.
Emotional: Peace of Mind for Maintenance Teams
A failed bearing on a critical drive line means emergency maintenance, lost production, and stressed-out teams. Our customers tell us the #1 benefit is simply not having to think about pulley bearings anymore.
Story: Detroit Automotive Assembly Line
A Tier 1 automotive supplier was replacing pulley bearings every 4 months on a transfer line drive due to axial loading from a 35-degree belt angle. After switching to GOODLY surface-pressure-bearing pulleys: zero bearing replacements in 28 months. Annual savings: $340,000 in parts and downtime.
Stickiness: One Design Change, Years of Reliability
When you spec our surface-pressure-bearing pulleys into your machine design, you are not just buying a component — you are eliminating a failure mode. That reliability becomes part of your machine's reputation.
Where Surface-Pressure-Bearing Pulleys Excel
Transfer Lines
Multi-station automated assembly with complex belt routing and angled drives
Miter Gearboxes
Right-angle power transmission where input and output shafts are perpendicular
Heavy Machinery
High-load conveyor drives, material handling equipment, mining belt systems
Marine Systems
Corrosion-resistant options for deck machinery, winch drives, and propulsion auxiliaries
Engineering FAQ
QHow do I calculate the axial load on my drive?
Our application engineers can help with a free load analysis. Send us your belt geometry, tension values, and pulley positions. We will calculate the resultant axial force and recommend the optimal pulley configuration — typically within 48 hours.
QCan surface-pressure-bearing pulleys run in wet or contaminated environments?
Yes. We offer sealed variants with IP65-rated labyrinth seals and food-grade grease for washdown environments. Stainless steel construction is available for corrosive or marine applications.
QAre these pulleys compatible with all timing belt types?
Surface-pressure-bearing pulleys are compatible with all standard timing belt profiles (HTD, GT, T, AT) as long as the tooth profile and pitch match. The axial bearing function is independent of belt type.
