Customized VFFS Timing Belts to Solve Production Pain Points in the Food Packaging Industry
As a team with years of deep engagement in the industrial transmission field, we know well that for packaging equipment manufacturers, parts distributors, and end-user food production enterprises, a small timing belt directly determines the production efficiency and finished product qualification rate of the entire packaging line. Many customers have told us that problems caused by inferior timing belts are constantly eroding their profits:
Are These Film Pulling Pain Points Slowing Down Your Production?
Through communication with over 500 packaging industry customers globally, we have summarized the four most common pain points, and these problems are often rooted in an unqualified timing belt:
Pain Point 1: Inconsistent Bag Length and Frequent Photo-Eye Tracking Failures
When your customers report inconsistent bag lengths, or the photo-eye system frequently loses tracking points, the problem often lies in the insufficient tooth profile accuracy and uneven pitch of inferior timing belts. These tiny errors accumulate after hundreds of cycles, eventually disrupting the entire packaging process and soaring the rejection rate.
Our Solution: We adopt precision mold integral molding technology to ensure that the shape and spacing of each tooth are highly consistent, controlling the precision of the stepping stroke within ±0.1mm, completely eliminating cumulative errors, and making every packaging bag regular and uniform.
Pain Point 2: Film Slippage During High-Speed Operation or With Heavy Films
During the startup phase, high-speed production, or when processing smooth films such as OPP, PET, or aluminum foil composite heavy films, the friction of ordinary rubber surfaces is insufficient, which is easy to cause slippage, leading to production interruption.
Our Solution: We offer an optional high-friction red coating process. Through special PU/rubber surface treatment, the surface friction coefficient is increased by more than 40%. Even the smoothest packaging film can be firmly gripped, completely solving the downtime loss caused by slippage.
Pain Point 3: Premature Belt Wear, Cracking, or Even Breaking
Nothing disrupts the production schedule more than sudden belt breakage. Inferior belts use low-end rubber and ordinary fiber cores, which cannot withstand the long-term tension changes and repeated bending of packaging machines. They often need to be replaced every two to three months, which not only increases the cost of parts but also brings frequent downtime maintenance.
Our Solution: We use high-quality polyurethane (PU) or high-grade rubber substrates, paired with high-strength glass fiber or steel cord cores. The tensile strength is increased by 50%, and the wear resistance and anti-aging performance far exceed industry standards. The service life is 30-50% longer than ordinary belts, extending the customer's replacement cycle from 2-3 months to 12-14 months.
Pain Point 4: Belt Tracking Off and Severe Edge Wear
If your belt always runs to one side, requires frequent manual adjustment, and the edge wears quickly, it is because the production process of ordinary suppliers is rough, the cutting edge is not straight, and the internal tension is uneven.
Our Solution: Through integral molding technology combined with automated precision cutting, we ensure that the internal structure of the belt's cross-section is completely uniform. The computer-controlled cutting process ensures that the edges are absolutely straight and parallel. From installation to scrapping, the belt can always run centered without frequent adjustment.
The Core of High-Performance Timing Belts: Our Three-Layer Engineering Structure
To build this product, our R&D team optimized the materials and technology of each layer, and the three-layer structure works together to maximize performance:
1. Outer Layer: Chloroprene Rubber Belt Body
We select high-grade chloroprene rubber as the belt body substrate. It has excellent oil resistance, heat resistance, and anti-aging performance. Even in a wide temperature range from -20℃ to 80℃, it can maintain elasticity and dimensional stability, while resisting the erosion of cleaners and ozone, and will not deform after long-term use.
2. Middle Layer: Glass Fiber Tension Core
The core of the belt is the high-strength glass fiber cord core, which provides super tensile strength and flex fatigue resistance, with extremely low elongation under load. Even after millions of bends, it can maintain the accuracy of the tooth pitch, without stretching and lengthening, ensuring that the step accuracy after 1000 hours of operation is exactly the same as after 1 hour of operation.
3. Inner Layer: Nylon Tooth Fabric
The special nylon fabric on the tooth surface, on the one hand, protects the rubber tooth surface from the wear of pulley meshing, on the other hand, provides a low-friction meshing interface, making the operation smoother and quieter, and greatly extending the service life of the belt.
How to Choose the Right Timing Belt for Your Equipment? Our Selection Guide
Many customers don't know how to choose a suitable belt. We have sorted out a simple selection step to help you quickly find the right model:
1. Confirm the Tooth Profile: First distinguish whether your belt is HTD round tooth (modern standard, higher torque, lower noise) or trapezoidal tooth (commonly used in traditional models), the two are not interchangeable.
2. Count the Teeth: Lay the old belt flat and count the total number of teeth. Even one tooth difference will lead to the wrong length.
3. Measure the Pitch: Measure the distance between the centers of two adjacent teeth, common ones are 5mm, 8mm, 10mm, etc.
4. Measure the Circumference: Use a soft tape measure to measure the total circumference of the belt, with the unit accurate to millimeters.
5. Measure the Width: Measure the width of the belt. Our standard widths are 17mm and 25mm, and customization is also supported.
If you are not sure, just send these measurement data to us, and our technical team will confirm the most suitable model for you within 4 hours.
Two Configurations to Adapt to Your Different Working Conditions

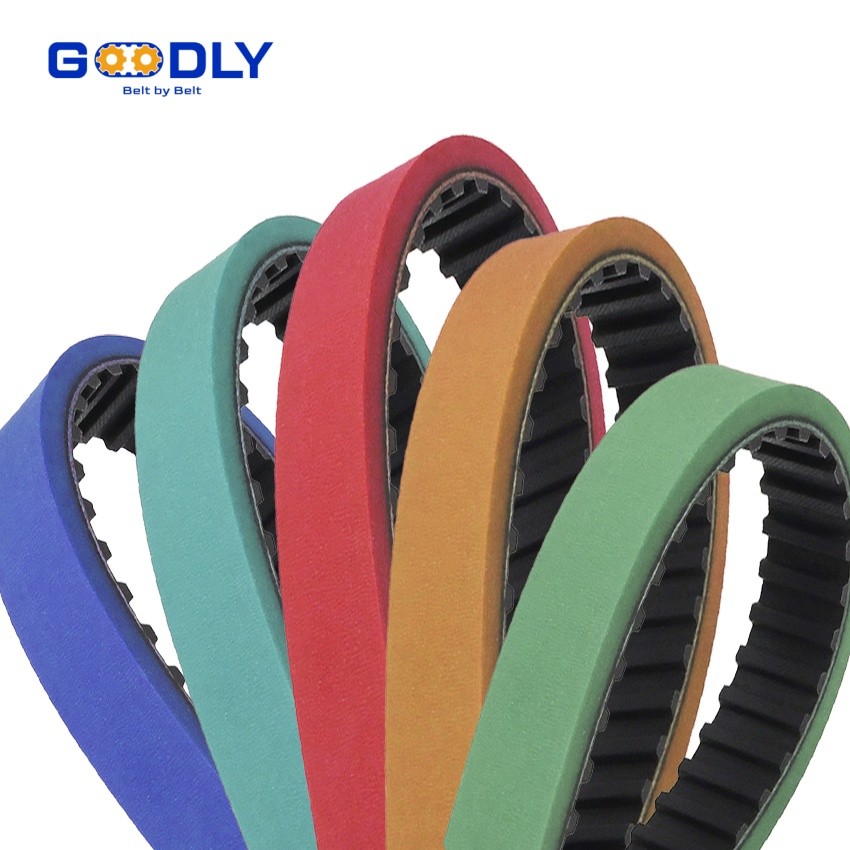

We provide two surface configurations for this timing belt to meet different production needs:
Standard Black Timing Belt
Our standard black belt is made of high-quality rubber/PU material, with high cost performance and strong versatility. It is suitable for 80% of conventional packaging working conditions, such as ordinary weight, non-smooth packaging film, and is the standard choice for most customers.

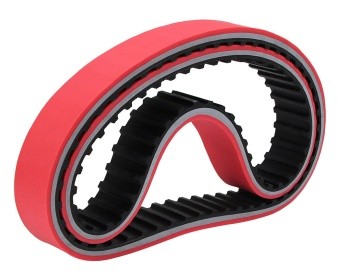

High-Friction Red Coated Timing Belt
For high-demand working conditions, our red coated version is the best choice:
- Processing smooth films such as OPP and PET
- Processing aluminum foil composite heavy films
- High-speed production scenarios above 60 bags/minute
This configuration can help you completely solve the slippage problem, and it is the first choice for upgrade for high-demand customers.
Why Choose Goodly Belts' Timing Belts?
Compared with ordinary suppliers on the market, our advantages are obvious:
- High-quality materials, lower total cost of ownership: We don't cut corners with low-end materials. Our belts have a 30-50% longer life than economic products. Even though the unit price is slightly higher, in the long run, it can help you save a lot of replacement costs and downtime losses.
- Precision manufacturing, accuracy far exceeding industry standards: We use German imported molding equipment, the dimensional accuracy is controlled within ±0.3mm, which is stricter than the industry standard of ±0.5mm, which is directly converted into more accurate film pulling positioning and lower rejection rate.
- Flexible customization, small batches are also acceptable: Unlike the rigid standards of large suppliers, we support custom sizes and custom widths. Even non-standard models can accept small batch orders to meet your special needs.
- The trusted choice of global customers: At present, our timing belts have served more than 500 packaging equipment manufacturers and service providers in more than 30 countries around the world. From small snack packaging to large industrial bag making machines, our products are running stably.
Customer Case: How We Helped a Customer Save $15,000 Annually
Case 1: Solving the Chronic Slippage Problem in High-Speed Snack Packaging
Challenge: A snack manufacturer in Southeast Asia, running metallized OPP film on their Songchuan ZL220 equipment, had frequent slippage at a speed of 60 bags/minute, and needed to replace the belt every 2-3 months.
Solution: We recommended them to upgrade to our red coated 240L timing belt, and provided guidance on tension adjustment.
Result: The slippage problem completely disappeared, the belt service life was extended to 14 months, the production uptime increased by 8%, saving the customer about $15,000 annually in downtime and parts costs.
Case 2: Non-standard Customization to Adapt to Modified Equipment
Challenge: An equipment manufacturer modified their model and needed a non-standard belt with a width of 22mm instead of the standard 25mm.
Solution: We custom-cut the 270L belt for them, and reinforced the edge to prevent fraying.
Result: Perfectly adapted to the modified equipment. The customer now uses our custom belt as the standard configuration for this model, ordering more than 200 belts every year.
Simple Ordering Process, Fast Delivery
1. Confirm Requirements: Tell us your belt model, or measurement data, and whether you need red coating or custom width.
2. Get a Quote: Contact our team, you can receive the quote and availability confirmation within 4 hours.
3. Confirm Order: After confirming the quote, provide the receiving information. For custom orders, we will provide technical drawings for your confirmation.
4. Production & Delivery: Standard models ship in 2-3 days, custom models take 5-7 days to produce, international logistics can be reached in 5-15 days, and logistics tracking is provided throughout the process.
5. After-sales Support: We provide installation guidance. If you have any quality problems, we will solve them for you as soon as possible. For repeat orders, your parameters will be automatically saved for quick repurchase.
Frequently Asked Questions
Q: Are your belts compatible with my equipment brand?
A: Our timing belts meet international standards. As long as the parameters match, they can be compatible with most VFFS equipment on the market, including mainstream brands such as Songchuan, Ruiji Jinhong, Yamato, Mettler-Toledo.
Q: Can the width be customized?
A: Of course, we support custom cutting width. In addition to the standard 17mm and 25mm, any width you need can be done.
Q: How long does a custom order take?
A: The production cycle for non-standard customization is generally 5-7 days. We recommend that you can stock some commonly used non-standard models to avoid stockouts.
Q: When do I need to replace the belt?
A: When you find tooth surface wear, belt body cracking, stretching and lengthening, edge fraying, or when you need to frequently adjust the deviation, it's time to replace it. We recommend preventive replacement every 12-18 months, which is more cost-effective than sudden failure downtime.
Choose Goodly Belts to Protect Your Production Line
If you are troubled by the film pulling problem of the packaging machine, or are looking for a reliable industrial belt partner that can provide customized solutions, welcome to contact us at Goodly Belts.
Our technical team will provide you with free working condition evaluation and selection suggestions, helping you find the most suitable transmission solution, so that your production line can bid farewell to downtime and run efficiently.
Visit our official website: www.goodlybelts.com, or send an email to: anran@gdlbelt.com to get more information and exclusive quotation.
